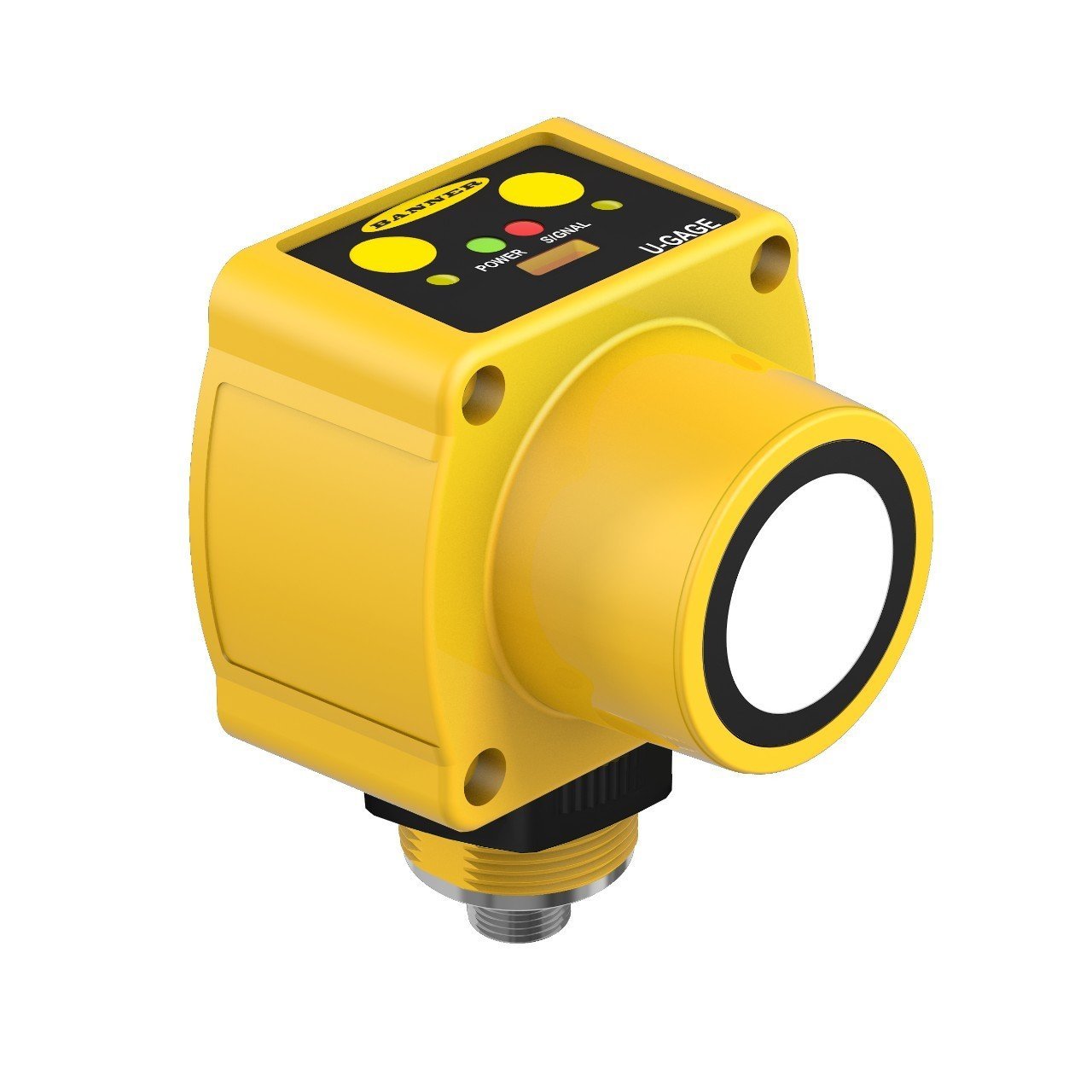

Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Time of Flight
Housing Style
Rectangular
Primary Housing Material
PBT
Indicator
LED(s)
Analog Output Configuration
0-10 V dc or 4-20 mA
Analog Resolution/Discrete Repeatability
1
Max Sensing Distance (mm)
8000
Minimum Sensing Distance (mm)
200
Sensing Beam
Ultrasonic
Power Supply
13-30 V dc
Delay at Power-up (ms)
1500
Adjustments
Push Button (s)
Temperature Effect (mm/°C)
Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
Connection
Integral QD
QD Type/Cable Length
M12 (Euro) requires mating cordset
Number of Pins
5
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Analog Current Output Rating
1 kΩ or [(Vcc-5 V)/0.02 A] Ω, whichever is lower
Analog Voltage Output Rating
500 Ω min. load impedance
Output Protection
Protected against short circuit conditions
IP Rating
IP67
NEMA Rating
NEMA 6P
Storage Temperature (°C)
-40 to 90
Max Operating Temperature (°C)
70
Min Operating Temperature (°C)
-20
Max Op. Relative Humidity Non-Condensing (%)
100
Warm-up Time (minutes)
15
Temperature Warm-up Drift upon Power-up
< 7% of the sensing distance upon power-up.
Temp. Warm-up Drift (Notes 1)
After 5 min, the apparent switchpoint is < 0.6% of the actual position.
Temp. Warm-up Drift (Notes 2)
After 25 min, the sensing position will be stable.
Minimum Response Time (ms)
100
Rep Rate (ms)
96
Analog Linearity (mm)
+/- 0.2% of span from 200 to 8000 mm; +/- 0.1 % of span from 500 to 8000 mm (1 mm minimum)
Minimum Window Size (mm)
20
Ultrasonic Frequency (kHz)
75
Power/Current Consumption (exclusive of load)
100 mA max @ 10 V dc; 40 mA max @ 30 V dc
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Feature: Remote Teach
Yes
Feature: Clear Object Detection
Yes
Feature: Timing (Hold/Delay)
No
Feature: Chemical Resistant
No
Feature: Pump-in/ Pump-out
No
Application: Ultrasonic
Yes
IO Link
No
Wireless
No
Input/Output
Analog
